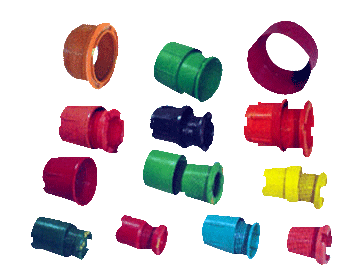

The Thread
Protectors are designed to provide protection to the
connections during handling and transportation, and to
prevent debris from entering the threads and tube body.
The threads are made in such a manner that they cover
all the threads of the connections and prevent the
thread protector from stripping or vibrating loose. Our
thread protectors are made of Nitrile Rubber having high
tensile, self lubricating, high temperature & oil
resistant properties, upto 90f+5˚A hardness. The rubber
material used makes it lighter and rust free compared to
metallic protectors.
Left and right hand threads as per customer's
requirements are made.
We can develope Thread Protectors of any given size. |
|
SIZES AND THREAD TYPES AVAILABLE |
|
|
|
|
Sr. No. |
Size |
Thread Type |
Type |
1 |
¼ " |
LP/NPT |
Box and Pin |
2 |
½" |
LP/NPT |
Box and Pin |
3 |
1" |
LP/NPT / CS HYDRIL / AMMT |
Box and Pin |
4 |
1 ¼ " |
AMMT / CS HYDRIL |
Box and Pin |
5 |
1 ½" |
AMMT / CS HYDRIL |
Box and Pin |
6 |
1 5/8" |
UN 18 |
Box and Pin |
7 |
1" 66 |
NUE |
Box and Pin |
8 |
1" 90 |
NUE |
Box and Pin |
9 |
1- 315" |
NUE |
Box and Pin |
10 |
2" |
FIG 1502 /602/NPT/LP/NPT |
Box and Pin |
11 |
2 1/16" |
CS HYDRIL |
Box and Pin |
12 |
2-3/8" |
REG/IF/EUE/PAC/NUE |
Box and Pin |
13 |
2-7/8" |
REG/IF/NUE/EUE/HT PAC/PH-6/FOX/RBDS/NEW VAM |
Box and Pin |
14 |
3 1/2" |
LP/NPT/FIG1502/FIG602/REG/IF/EUE/PH-6/NEW WAM/NUE/FOX |
Box and Pin |
15 |
4" |
FIG 602/IF/NUE |
Box and Pin |
16 |
4 ½" |
REG/IF/EUE/PH-6/LTC/NEW VAM |
Box and Pin |
17 |
5" |
BTC/STUB ACME |
Box and Pin |
18 |
5 ½" |
BTC/LTC/STC/IF/GPDS/HT55/NEW VAM |
Box and Pin |
19 |
6 5/8" |
REG/FH |
Box and Pin |
20 |
7" |
BTC |
Box and Pin |
21 |
7 5/8" |
REG / BTC |
Box and Pin |
22 |
8 5/8" |
REG |
Box and Pin |
23 |
9 5/8" |
BTC |
Box and Pin |
24 |
10 ¾" |
BTC |
Box and Pin |
25 |
13 3/8" |
BTC |
Box and Pin |
26 |
16" |
BTC |
Box and Pin |
27 |
18 5/8" |
BTC |
Box and Pin |
28 |
20" |
BTC |
Box and Pin |
29 |
|
WT 26 |
Box and Pin |
30 |
|
XT 39/XT57/XT50 |
Box and Pin |
|
|
|
|
|
|
|
|
